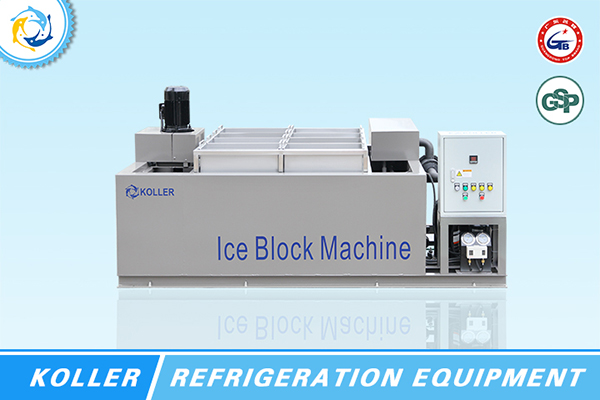

Canada MB40 Ice Block Machine, Ice Block Machine, Tube Ice Making Machine, Plate Ice Machine
1. Simple Description
a. Capacity: 4000kg ice blocks in 24hours.

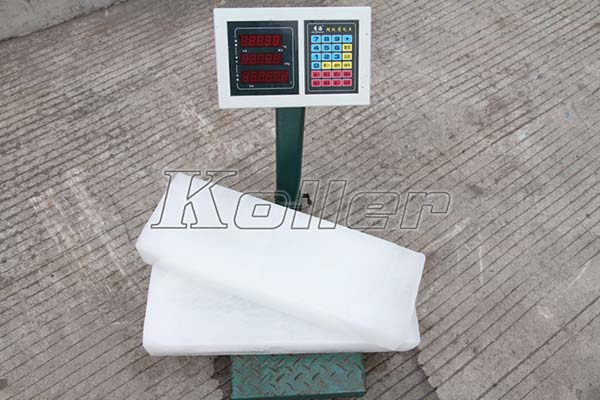

b. Ice block size: 5kg, 10kg, 15kg, 20kg, 25kg, 30kg and 50kg.
c. Material: Stainless steel 304 for water tank and ice moulds.

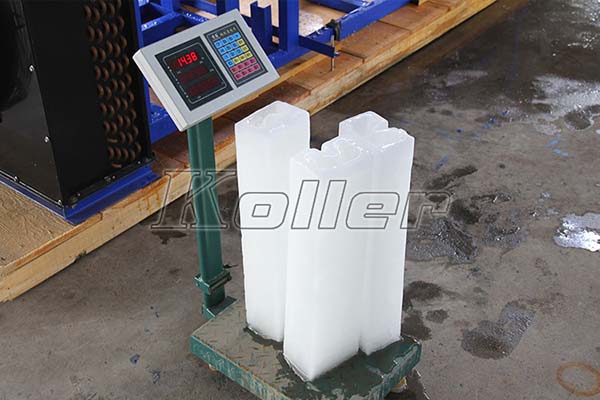

2. Specification for Ice Blocks
| No. | Specification of Ice Block (Thickness*Width*Height) | Ice Can (PCS) | Freezing Time (H) | Quantity/24h (PCS) | Weight (Kg/PC) |
| 1 | 100mm*200mm*600mm | 99 | 6 | 396 | 10 |
3. MB40 Ice Block Machine Size
| Water cooler | Ice block machinery unit | 1630mm*730mm*1520mm |
| Water tank | 3260mm*1490mm*980mm | |
| Cooling tower | 1650mm*1650mm*1480mm | |
| Air cooler | Ice block machinery unit | 1860mm*1500mm*1150mm |
| Water Tank | 3260mm*1490mm*980mm |
4. Technical Parameter
| Basic Information | ||
| 1 | Name | Ice Block Machine |
| 2 | Model | MB40 |
| 3 | Daily output | 4tons (4,000kg) / day |
| 4 | Weight | 1,600kg |
| 5 | Temperature control system | Digital temperature control |
| 6 | Ice weight density | 500~550kg/m3 |
| 7 | Cooling system | Water cooling system |
| Compressor Unit | ||
| 1 | Type | Semi-hermetic piston compressor |
| 2 | Brand name | Bitzer / REFCOMP / Copeland |
| 3 | Power | 20HP |
| Cooling Tower | ||
| 1 | Cooling tower motor | 0.75KW |
| 2 | Cooling water pump | 2.2KW |
| 3 | Cooling air volume | 230CMM |
| 4 | Cooling water flow | 23.4 m3/h |
| 5 | Water consumption of cooling tower | 0.05 m3/h |
| 6 | Power of circulating water pump | 4KW |
| Main Material | ||
| 1 | Water tank | 304 stainless steel (1 PC) |
| 2 | Ice moulds | 304 stainless steel (99 PCS) |
The above-mentioned parameter will be changed subject to technical innovation without further notice.
