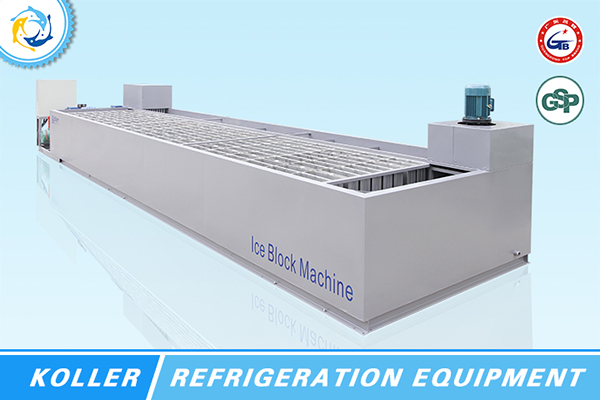

MB150 Ice Block Machine, Ice Block Maker

MB150 Ice Block Machine, Ice Block Maker

1. Simple Description
a. Capacity: 15000kg ice blocks in 24hours.
b. Ice block size: 20kg, 25kg, or 30kg.
c. Material: stainless steel 304 for water tank and ice moulds.

2. Specification for Ice Blocks

No. Specification of Ice Block (Thickness*Width*Height) Ice Can (PCS) Freezing Time (H) Quantity/24h (PCS) Weight (Kg/PC)
1 130mm*260mm*700mm 252 8 756 20





3. MB150 Ice Block Machine Size
Ice block machinery unit: 2260mm*1300mm*1330mm;
Water tank size: 7500mm*1970mm*1380mm;
Cooling tower: 2900mm*2900mm*2370mm

4. Technical Parameter

Basic Information
1 Name Ice Block Machine
2 Model MB150
3 Daily output 15tons (15,000kg) / day
4 Weight 4,500kg
5 Temperature Control system Digital temperature control
6 Ice weight density 500~550kg/m3
7 Cooling system Water cooling system
Compressor Unit
1 Type Semi-hermetic piston compressor
2 Brand name Bitzer / REFCOMP / Copeland
3 Power 75HP
Cooling Tower
1 Cooling tower motor 2.2KW
2 Cooling water pump 7.5KW
3 Cooling air volume 700CMM
4 Cooling water flow 78.1 m3/h
5 Water consumption of cooling tower 0.05 m3/h
6 Power of circulating water pump 7.5KW
Main Material
1 Water tank 304 stainless steel (1 PC)
2 Ice Moulds 304 stainless steel (252 PCS)

5. Crane System
Crane system includes crane, water filling equipment, ice falling shaft, ice thawing tank.
Crane system is designed to match with ice block machine to place ice blocks.

6. Crane Equipment

Item Equipment Name Quantity Material and others
1 Crane system 1 Channel steel, I-bar steel, motor and so on Single rails
2 Electrical hoist 1 Crane capacity: 0.9tons; Single track
3 Crane whole dimension 1 13M(L) * 4M(H)
4 Water filling system 1 Stainless steel plate
5 Ice falling shaft 1 Iron plate
6 Ice thawing system 1 Stainless steel plate
7 Crane supporters 8 Channel steel
