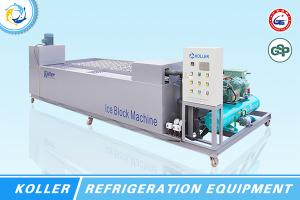

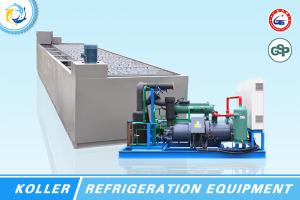

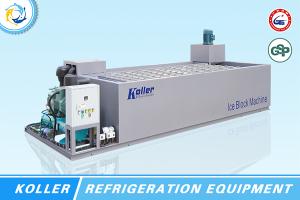

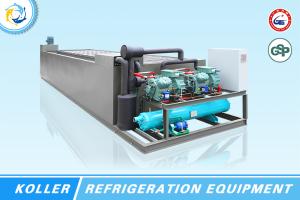

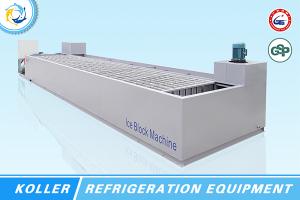

Ice Block Machine (with Brine Water)
Koller Ice Block Machine Features:
1. Block size (KG) : 5, 10, 15, 20, 25, 30, 50, 100
We can also design the ice block size according to customer needs.
2. The ice molds and salt water tank are made of SUS304 stainless steel 304, which is rust and corrosion resistant, extending the service life.
3. The modular structure and integrated design save space, make it easy to move and install, and make it easy to retrieve ice on the spot.
4. The ice block machine has a low energy consumption, requires very little maintenance, is environmentally friendly and features a high capacity,
5. All dimensions of the ice block machines are designed according to international standard sizes for containers in order to ensure they are easy to ship and make transportation of the machine convenient.
6. The capacity can be customized according to customer demands, and is incredibly flexible.
| Ice Size/pc | Ice Dimension (Thickness x Width x Height) | Freezing Time(Hours) | Ice Making Frequency(Times) |
| 5KG | 80 x 165 x 500 | 4.8 | 5 |
| 10KG | 100 x 205 x 610 | 6 | 4 |
| 120 x 160 x 610 | 8 | 3 | |
| 15KG | 100 x 320 x 610 | 6 | 4 |
| 120 x 265 x 610 | 8 | 3 | |
| 20KG | 120 x 320x 750 | 8 | 3 |
| 25KG | 120 x 360 x 750 | 8 | 3 |
| 145 x 360 x 750 | 12 | 2 | |
| 30KG | 145 x 300 x 950 | 12 | 2 |
| 50KG | 145 x 460 x 1000 | 12 | 2 |
| 180 x 380 x 1000 | 16 | 1.5 | |
| 100KG | 210 x 550 x 1200 | 24 | 1 |
| Item | Name of Components | Brand Name | Original Country |
| 1 | Compressor | BITZER/BOCK/Frascold | Germany/Italy |
| 2 | PLC Programmable Control | SIEMENS | Germany |
| 3 | Evaporator | XUEMEI | China |
| 4 | Water Cooling Condenser | XUEMEI | China |
| 5 | Electrical Components | LG | South Korea |
| 6 | Refrigeration Components | DANFOSS/CASTAL | Denmark |
| 7 | Ice Moulds and Water Tank (SUS 304) | KOLLER | China |
| 8 | Water Pump | HAILONG | China |
| 9 | Cooling Tower | LINKO | China |
Supply power: 380V, 50Hz, 3P or 220V~240V, 50Hz, 3P or 220~240V, 60Hz, 3P or 380V, 60Hz, 3P
Standard working conditions:
Evaporating temp: -15 ℃;
Condenser temp: +40℃;
Ambient temp: 40℃;
Refrigerant: R22 or R404a;
Cooling system: Water cooling system or air cooling system;
Specification and technical information are subject to change without notice.
